MiniCat 51 WIFD (Pre-order, ships in one week)
Designed for photography enthusiasts who love wide-angle views. Its standout feature is an ultra-bright f/3.5 aperture, allowing you to capture faint nebulae or comets in a very short time. (The f/3.5 aperture lets in twice as much light as an f/5 aperture.)
The MiniCat uses the latest Petzval design with 6 lens elements, including 2 Super ED and lanthanum lenses to perfectly control chromatic aberration. It’s currently the only high-quality, short focal length 178mm f/3.5 astrograph telescope available on the market.
The MiniCat holds three unique patents, ensuring easy and perfect focusing along with coaxial image quality to prevent drawtube tilt issues caused by optical misalignment.
For perfectionists in astrophotography, we recommend using BXT software after stacking your images to achieve flawless correction of peripheral star points.
Pairs well with
- Lens Type
- 6-Element Petzval
- Lens Elements
- Super ED Glass x2
- Focal Length
- 178 mm
- Diameter
- 51 mm
- Focal Ratio
- f/3.5
- Image circle
- 43.2 mm
- Focuser
- WIFD R&P Focuser
- Compatible with EAF
- Flange Distance
- 58-30mm
- Focus travel
- 0-28mm (Ruler to 40)
- Adapter Included
- Tilt Adjuster
- Rotator
- M54 → M48 Adapter
- Optional Flattener
- No Flattener Required
- Camera Format
- Full Frame (Compatiable)
- APS-C (Recommended)
- M4/3
- Tube Length
- 210 mm
- OTA Weight
- 1.67 kg / 3.68 lbs
- Total Weight
- 2.29 kg / 5.05 lbs
Choose options
What's in the box
MiniCat 51
Bahtinov Cap
M48 adapter
Dual Mounting Plate
Mounting Ring Handle bar
Soft Carry Case
Allen Key Set
Agile & highly efficient
Designed for photography enthusiasts who love wide-angle views. Its standout feature is an ultra-bright f/3.5 aperture, allowing you to capture faint nebulae or comets in a very short time.
UltraFast Petzval
The innovative 6-element Petzval design boosts traditional Cat telescopes' efficiency with a cutting-edge optical system.
Extra-low Dispersion (ED) glasses
Contains 2 Super ED glasses and lanthanum lenses with advanced fully multi-coated, delivering sharp, vibrant images with true-to-life colors, significantly reducing chromatic aberration.
Needs NO Flattener
The Petzval design inherently flattens the field, eliminating the need for an external field flattener.
ultra-bright
f/3.5 Aperture
2x
faster than
RedCat 51 (f/4.9)
Brighter And Wider
Switch between tabs to see the different FOV of both 51.
Compatible with Electronic Motorized Devices
Hassle Free Installation
( No Mounting Bracket Kit required )
Leading the market
Wo patented design
The MiniCat holds three unique patents, ensuring easy and perfect focusing along with precise coaxial image quality, preventing draw tube tilt issues caused by optical misalignment.
:
Internal Focuser
The WIFD focusing Design relocates the focuser to the center of the telescope, addresses the issue of tube tilt caused by the weight of accessories and cameras.
Learn More
Integrated Bahtinov mask
Laser engraved on high-definition and stable optical PMMA. Enhances astrophotography experience with quick and accurate adjustments.
CAT Handle Bar
Crafts for enhanced portability and versatility.
Mounting Ring
Designed for seamless functionality without compromising on stability. Engineered with wide surface contacts, this innovative ring ensures a secure fit while enabling fast, easy detachment.
Dual side Dovetail Plate
The lightweight dovetail plate is designed with both Vixen-style and Arca-Swiss types, offering enhanced compatibility with various mounts and mounting rings.
comprehensive configuration
Precision Imaging Adjustment
Tilt Adjuster
The built-in tilt adjuster makes it easy to correct camera sensor tilt issues.
Camera Angle Rotator
Correct any angular discrepancies, and get the perfect angle on your images.
Ultra-portable
With a total weight of only 2.29 kg, it is lightweight and portable, making it perfect for travel and family fun.
Widest Astrograph //
// Sharpest Lens
MiniCat 51 can also be used as a regular photographic lens. Its telescope-grade APO optics deliver sharper images and more accurate color.

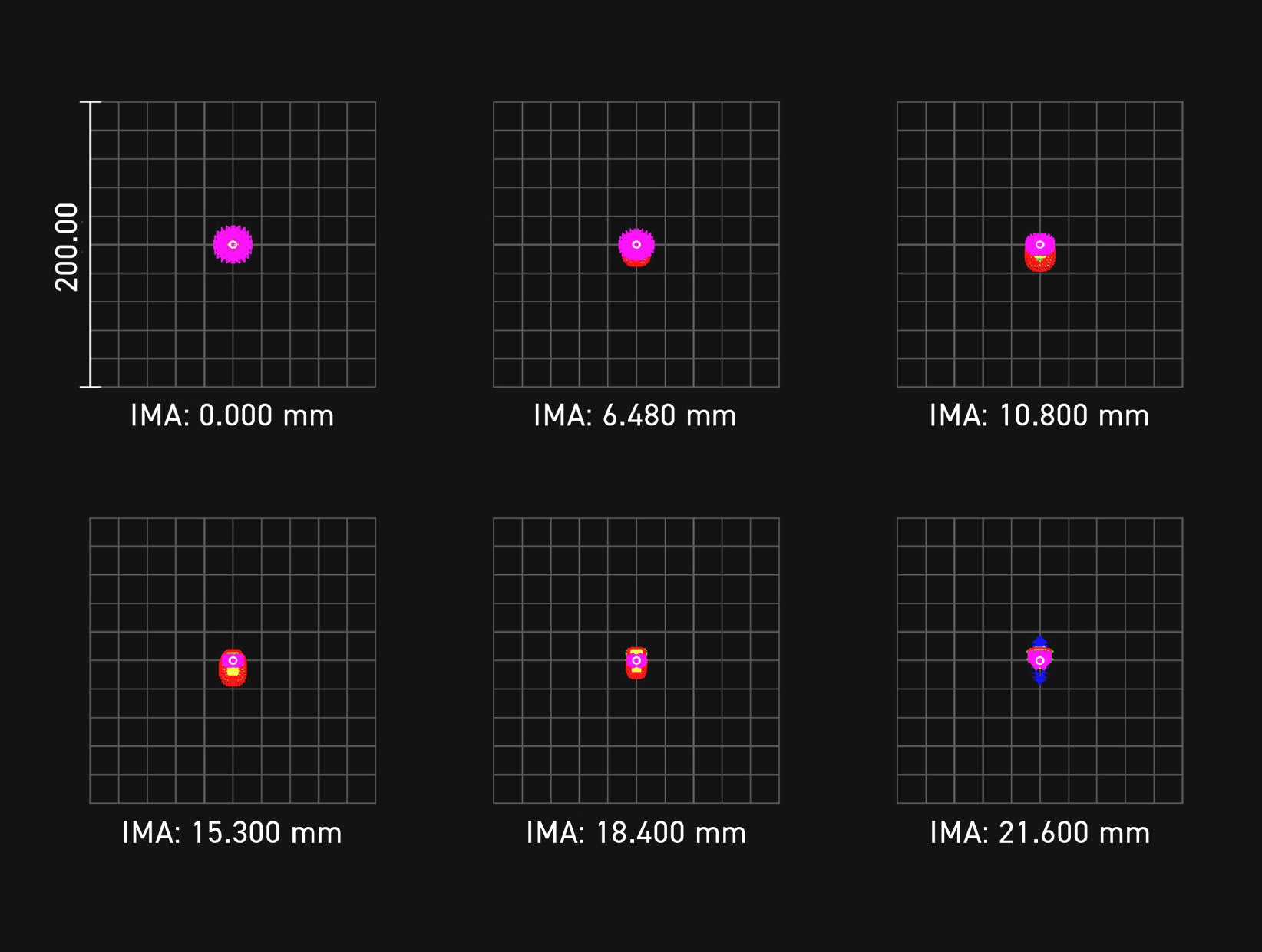

Correctable Corner Imperfections
Due to the nature of MiniCat’s fast aperture optical design, edge stars may not be as round as with other RedCats. However, our tests show it still outperforms conventional lenses. With aberration correction software like BXT, peripheral distortions can be perfectly corrected on APS-C sensors, while Full Frame may need some fine-tuning for even better results.
:
▼ APS-C ( Recommended )
Before Process
After Process
Gallery
Swipe left and right to view the Original & After processed image.
Original
After Process
▲ M8+M20 (APS-C)
MiniCat 51 + ZWO ASI 2600MC Duo
Courtesy of Dear Bear
- Stacked ( Original & After Process )
- Original Single Shot Corner Grid
Original
After Process
▲ M24 (APS-C)
MiniCat 51 + ZWO ASI 2600MC Duo
Courtesy of Dear Bear
- Stacked ( Original & After Process )
- Original Single Shot Corner Grid
